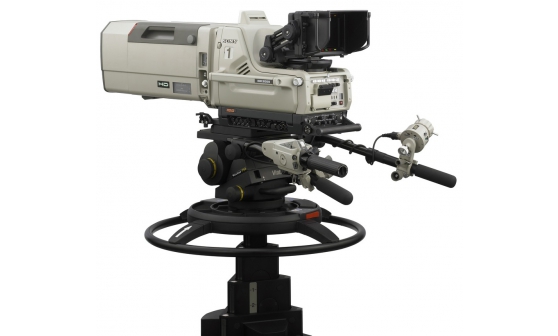

HDC-2000W / 2000B
3G雙速多格式、高解析的攝影機 (米色 / 黑色)

------------------------------------------------------

特價販售中,歡迎來電詢問
電話: 07-5551718   0921-237888
結帳方式:信用卡 / ATM / 貨到付款
放入購物車 購物車清單
◎3000元以上免運費
一般
重量 21KG

操作溫度 -20°C 至 +45°C (-4°F - +113°F)

儲存溫度 -20°C 至 +60°C (-4°F - +140°F)

電源需求 240 V AC,1.7 A(最大),
180 V DC,0.9 A(最大),
12 V DC,10 A(最大)
相機
裝置 3片三分之二英寸型CCD

有效像素 1920×1080(H x垂直)

信號格式 1080 / 50I,在59.94i,23.98P,24P,25P,29.97P
1080 / 50P,59.94P,720 / 50P,59.94P,
1080 / 100I,119.88i,720 / 100P,119.88p

光譜系統 F1.4棱鏡系統

靈敏度 F10(1080 / 59.94i模式),
F11(1080 / 50i模式)(2000 lx時,89.9%的反射率)

內置過濾器CC A:CROSS,B:3200K C:4300K​​,D:6300K,E:8000K
信噪比(1080i的,典型) -60分貝/ -64分貝(W / NS最大值)

水平分辨率(1080i的) 1000電視線(中鋒)

快門速度選擇 1/60,1/125,1/250,1/500,1/1000,1/2000秒(50I)
1/100,1/125,1/250,1/500,1/1000,1/2000秒(在59.94i)
1/32,1/48,1/96,1/100,1 / 125,1 / 250,1/500,1/1000,1/2000秒(23.98P / 24P)
1/33 ,1/50,1/100,1/125,1/250,1/500,1/1000,1/2000秒(25P)
1/40,1/60,1/100,1/120,1 / 125,1/250,/ 500,1/1000,1/2000秒(29.97P)
1/60,1/125,1/250,1/500,1/1000,1/2000秒(50P)
1 / 100,1/125,1/250,1/500,1/1000,1/2000秒(59.94P)

調製深度(1080i的,典型值) Y:在27.5兆赫(800電視線具有典型的鏡頭)的50%,PB / PR:在12 MHz 80%
輸入/輸出規格
音頻輸入(CH1) XLR-3pin(女)(X1),麥克風或線路可選

音頻輸入(CH2) XLR-3pin(女)(X1),AES / EBU或麥克風或線路可選

返回控制輸入 6pin(×1)

提詞器1 BNC(X1),1.0 Vp-p的,75Ω

提詞器2 BNC(X1),1.0 Vp-p的,75Ω

直流輸入 XLR-4pin(X1),10.5〜17 V DC

測試輸出 BNC(X1),1.0 Vp-p的,75Ω
SDI輸出1(內嵌音頻) BNC(X1)3G-SDI,HD-SDI

起重機 12pin(X1)

取景器 D-sub 25pin(X1)

CCU 電光連接器(X1)

跟蹤 10pin(X1)

遠程 8pin(X1)

透鏡 36pin(×1)
  • High picture quality and high performance

    The HDC-2000 features a 2/3-type wide Progressive IT CCD for 2,200,000 pixels and a signal processing LSI, both newly developed to help achieve a high level of image quality via improved S/N, high resolution, and low smear compared to previous models. A 16-bit AD converter allows for optimal picture quality and enhanced black reproduction.

  • Slow motion via 2x speed recording

    1080/50i-59.94i and 720/50P-59.94P formats are supported, as well as 1080/23.98PsF-24PsF-25PsF-29.97PsF and 1080/ 50P-59.94P progressive formats, and 1080/100i-119.88i and 720/100P-119.88P slow-motion 2x speed recording formats.

  • Standard 3G optical digital transmission unit

    3G optical digital transmission of signals between the camera and camera control unit (CCU) is included and allows the following kinds of video signal transmission and system configurations:


    • 1080/50P-60P progressive video signal transmission
    • Transmission of 2Å~ speed recording signals such as 1080/100i-119.88i for production of slow-motion video
    • Transmission of HD prompter, HD TRUNK, and network TRUNK signals that utilize empty bands during 1080/50i-60i and 720/50P-60P operation
    • Dual camera system for transmitting video signals from a second HD camera to two CCUs using just one optical fibre/multi-cable
    • Sub-camera system for transmitting video signals from both an HDC2000 and another sub-camera—such as the HDCP1— using just one optical fibre/multi-cable and outputting their signals from one CCU




  • Adaptive-matrix colour-reproduction function

    This function accurately controls calculation factors for performing accurate colour conversion when shooting. This makes precise colour conversion possible even when shooting under conditions that would otherwise exceed the colour conversion range of traditional matrix functions, such as under strong monochromatic blue light sources.

  • Multi-matrix colour correction for matching multiple cameras

    In addition to the standard 6-axis matrix function, the camera has a multi-matrix function that permits you to adjust the hue and chroma for colour components in 16-axis directions independently. This is quite useful in colour matching among multiple cameras.

  • Knee and low-key saturation for strong and low-key lighting

    Change of hue and decrease in chroma that occur in highlighted areas can be compensated. This enables reproduction of natural skin tones under strong lighting. Saturation in low-key zones can be compensated. Thus, compensation for colour reproduction in all zones is enabled in combination with matrix colour compensation and knee saturation functions.

  • Selection of multiple gamma tables

    Seven types of standard and 4 types of hyper gamma tables are provided with this camera. The hyper gamma values enable cinema-like image creations with wide dynamic range, which are different from those achieved with conventional video gamma. Gamma tables created with CvpFileEditor™ can be saved to a “Memory Stick”, or registered to HDC-2000 from the MSU-1000/1500 or RCP-1500 series.

  • Versatile detail control functions

    A skin-tone detail function/Natural skin detail function allows control (emphasis or suppression) of the detail level for specific hues or chroma areas in the image by creating a detail gate signal from colour components of your specified hue, such as skin tones. The detail levels of three kinds of hues can be adjusted independently at the same time. The HDC-2000 also features the natural skin detail function, which allows for adjustment of the detail gate signal, allowing even more vivid distinction of areas like skin that you want to make smooth while selectively keeping areas like eyebrows that don’t require smoothing.

  • Numerous viewfinder functions

    Along with items such as operation messages, a zebra pattern, a safety-zone marker, and a centre marker, camera settings may also be displayed on the viewfinder screen. Furthermore, there are other indicators arranged above and below the viewfinder, such as a tally lampand a warning indicator to tell you that one or more settings are other than standard. Selections and settings for viewfinder display items, a safety-zone marker or centre marker, screen size marker, etc. can be made quickly and easily using setup menus displayed on the viewfinder screen or an external monitor. Assignable switches for operating the viewfinder are located on the rear panel of the camera. These switches are linked to viewfinder assignable switches, such as those featured on HDVF-EL70, and allow for using the camera’s buttons to perform functions like image zooming within the viewfinder.

  • Wide variety of input/output interfaces

    In addition to 3G/HD/SD-SDI output and HD/SD-SDI input, the HDC-2000 features a wide variety of input/output interfaces, including Network TRUNK function, HD TRUNK function and HD prompter function.

  • User-friendly operation

    Featuring a stylish exterior with a low overall height, the viewfinder’s position is kept as low as possible, bringing it closer to the optical axis of the lens. The camera also has a switch to which various functions can be assigned on the rear panel. You can activate your desired function, such as electronic colour-temperature conversion, instantly when shooting by assigning it to the switch in advance.

  • USB connector

    Connect a USB drive to the USB connector to save and load setup menu setting data.

  • Function for prevention of electrical shock

    When the power connection is unsafe, this shuts off the power supply from the connected Camera Control Unit.
