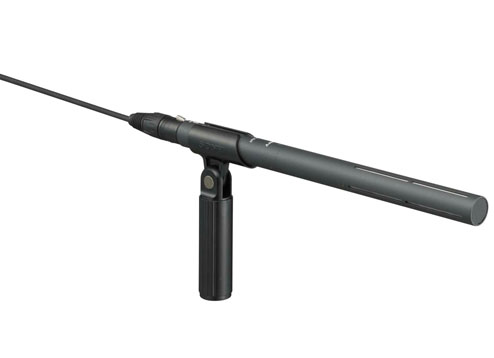

ECM-674
Most affordable of Sony's shotgun-type electret condenser microphone- ECM-674 exudes excellent voice pickup in field and studio productions. Built compact and light, it fits into Sony professional camcorders series with phantom or battery power. An ideal choice at a small price tag.

------------------------------------------------------

特價販售中,歡迎來電詢問
電話: 07-5551718   0921-237888

結帳方式:信用卡 / ATM / 貨到付款
放入購物車 購物車清單
◎3000元以上免運費
1. Affordable shotgun-type electret condenser microphone delivering excellent sound performance in field and studio productions

2. High-sensitivity, low-noise characteristics and flat-and-wide frequency response

3. Compact and Lightweight Design

4. Two-way powering feature allows for phantom powering or battery operation

5. Low inherent-noise level
一般
重量 184.3公克(不含電池)
207公克(含電池)

尺寸 (W x H x D) ø20.6 x 269.9 mm (ø13/16 x 10 5/8 inches)

電源需求 外部: DC 40 ~ 52V
電池: 1.5V

Capsule type Mono Electret Condenser

頻率響應 40 Hz to 20 kHz

方向性 單指向性 (super-cardioid)

感度 -36 dB ±3 dB

1kHz的輸出阻抗(Balanced) (1/2 ±20%) 220Ω ±20%

動態範圍 Phantom: 107 dB or more
電池: 98 dB or more

雜訊比 77 dB or more (IEC179 A-weighted, 1kHz, 1Pa.)

Inherent noise (0dB = 20µPa) 17 dB SPL or less

Wind noise 45 dB SPL or less (windscreen),
50dB SPL (不含windscreen), (0 dB SPL =  20µPa)

Induction noise from external magnetic field 0 dB SPL or less (0 dB SPL = 20µPa)

最大SPL (dB SPL)(0dB=20µP) Phantom: 124 dB SPL
電池: 115 dB SPL
隨機配件
Microphone spacer x 1

Windscreen x 1

操作說明書 x 1

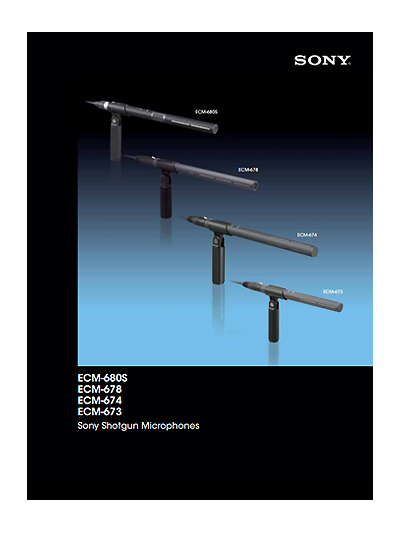

ECM-674.pdf
