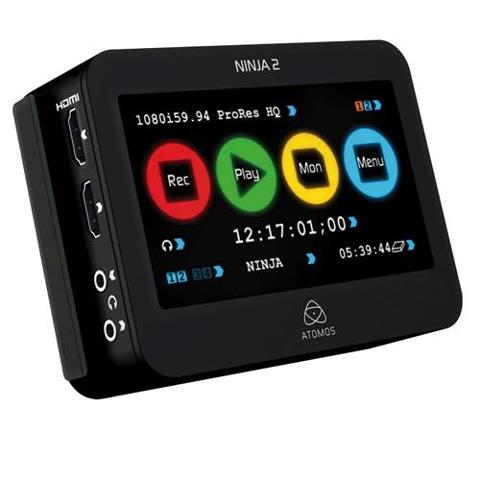

Ninja 2
10-bit HDMI to ProRes Recoder, Monitor and Playback Device

The Ninja-2 is a portable, intuitive touchscreen-operated HD recorder, monitor and playback device for professional media producers. It captures pristine 10-bit 4:2:2 video and audio direct from any HDMI source: DSLRs, decks, switchers, PC, Mac, iPad and iPhone. The Ninja-2 consumes very little power, ensuring long recording times (up to 16.5 hours on a 750GB disk) and the efficient use of batteries.
結帳方式：信用卡 / ATM / 貨到付款
放入購物車 購物車清單
◎3000元以上免運費
技術規格 　
重量 370克 (不含電池和硬碟)
670克 (含電池和硬碟)
尺寸 (W x H x D) 11.5 x 8.7 x 4.1公分 (不含電池)
Construction Aircraft-grade aluminium for durability + portability. Fanless for silent operation
工作電源 3W (只有監視器) / 6W (Rec, Mon & Play)
電池
7.2V-14.4V Battery System Compatible
NP Series
D-Tap
and supporting accessories		 All 7.4V
1.       2600mAh ~ Up to 10hrs
2.       5200mAh ~ Up to 20hrs
3.       7800mAh ~ Up to 30hrs
4.       AC Power via adaptor plate (option)
5.       D-Tap Adaptor (oables sold separately)

Continuous Power
Patent Pending

Primary-Secondary battery system.
Change batteries without losing power.
Loop batteries continuously
Touchscreen Size: 4.3” diagonal. Resolution: 800x480.
Aspect Ratio: 16:9 native / 4:3 Letterbox. SMPTE Colour Specification
Native Frame Rate Playback (48-60Hz)
Video Input
Uncompressed 10/8-bit 4:2:2
Simultaneously displayed on internal 4.3吋 Ninja2 screen		 HDMI x 1
(HD/SD-SDI x 1 with optional Connect SDI > HDMI converter)		 HDMI 1.4
Video Output Reclocked, ultra low jitter professional grade HDMI output, "HDMI 1.4"
Supported Formats (In/Out) HD 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080p30(60i), 1080p25(50i), 1080p24(60i), 1080p23.98(60i), 720p60, 720p59.94, 720p50, SD480i, 576i



Most HDMI cameras output 24p, 25p and 30p as 50i or 60i
Realtime Hardware Encoding
1920x1080 8/10-bit 4:2:2 to:		 > Apple ProRes ® HQ – 220Mbps
422 – 150Mbps
LT – 100Mbps
> Avid DNxHD Avid DNxHD – 220 / 220x – 220Mbps (8/10-bit)
Avid DNxHD – 185 / 185x – 185Mbps (8/10-bit)
Avid DNxHD – 145 / 145 Mbps (8-bit)
Audio input HDMI 2 channel + 2 analog channels with gain controls
Audio output HDMI 2 channel
Analog line and Headphone
Remote Start and Stop HDMI start / stop flags (Canon compatible)
Timecode Sony and Canon compatible HDMI timecode in and out
1.  Capture content in real-time directly from the camera sensor and encode it to Apple ProRes or Avid DNxHD formats, eliminating the lossy, time consuming capture-to-edit process. Bypass the image-degrading compression of in-camera flash storage and use limitless and cheap storage on removable 2.5 inch hard disks.

2.  The AtomOS operating system driving the Ninja-2 allows access to all functions through a fast and responsive touch-screen interface. SmartMonitor helps you accurately assess focus and exposure with focus peaking, adjustable zebra, false colour twin mode, blue-only exposure check and adjustments for individual filters. SmartLog allows you to get started on post-production in the field by logging and pre-editing your footage on the fly.

3.  The Ninja-2 is built from aircraft-grade aluminium. It’s light and can be mounted almost anywhere. All accessories come in a rugged case: batteries, chargers, disk caddies and a PC/Mac docking station.

4. Continuous Power allows you to unplug the depleted battery and replace it with a fully charged one without interrupting recording. The Ninja-2 comes with an AC power adaptor and two Lithium Ion camera batteries, which offer up to 10 hours battery life for continuous power on location and on the road.
